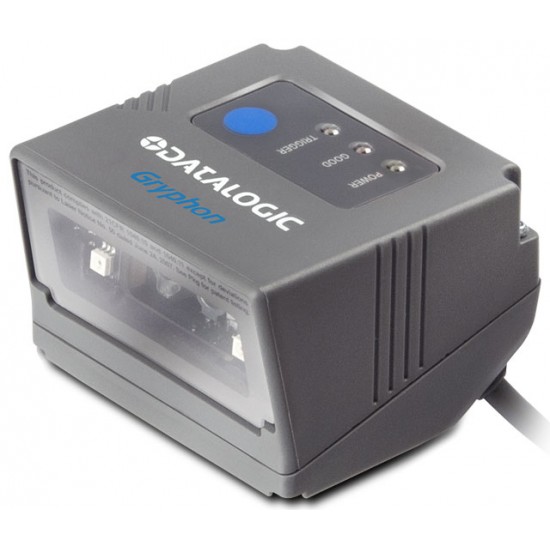

The Gryphon™ 4000 series represents the premium level of data
collection devices from Datalogic ADC. Using advanced imaging
technology, the Gryphon™ GFS4400 2D fixed mount bar code reader provides
a complete self-contained solution for OEM use into self-service
kiosks, price verifiers, ticket readers, document handling, and medical
laboratory applications, as well as vending machines and other automated
equipment.
Designed for easy integration, the Gryphon GFS4400 2D
module provides a ‘plug-and-play’ solution for system designers.
Constructed using high-impact resin to withstand repeated cleanings with
solvents and disinfectant solutions, the sealed enclosure meets
industrial standards against water and particulates to provide
dependable scanning performance.
The GFS4400 2D OEM module
features outstanding near-field reading, a wide angle field-of-view,
high motion tolerance, snappy reading, and also offers excellent
performance on decoding poor or damaged bar codes. As with all Gryphon
readers, the GFS4400 reader offers good-read visual confirmation with
Datalogic’s patented ‘Green Spot’ technology.
User comfort is
maximized with the GFS4400 OEM module’s steady, deep red illumination
light. Easier on the eyes than competitive products with flicker
illumination, the highly visible 4-Dot aimer defines a precise reading
zone and reduces accidental reads. The aimer’s center cross provides a
locator for targeted scanning in a multiple bar code environment.
The
GFS4400 OEM module provides snappy reading performance on all common 1D
and 2D codes as well as postal, stacked and composite codes like
PDF417. For mobile marketing or ticketing applications, this imager also
offers excellent performance when reading bar codes from mobile
devices.
The GFS4400 OEM module eliminates the need for separate equipment with signature capture and document scanning capabilities.
The
GFS4400 OEM module supports several modes that can be used as a
trigger. This module has the ability to automatically sense objects and
trigger itself. A continuous scan mode captures data whenever a bar
code passes into its field-of-view. The reader can also be triggered
remotely through software commands or via hardware input from
programmable logic controller (PLC) or sensor.
The GFS4400 OEM
module supports an RS-232 serial interface or a USB (USB-HID or USB COM)
interface. Available in two models, the GFS4450-9 model supports an
RS-232 serial interface, or the GFS4470 features a USB interface.
Features
Highly visible 4-Dot aimer with center-cross for targeted scanning
Omnidirectional reading
Advanced motion tolerance optics
Image capture and document scanning capabilities
Reads bar codes down to 4 mils
Reads 1D, 2D and postal codes plus stacked and composite codes
Interface options: RS-232 or USB
Datalogic’s patented 'Green Spot' for good-read feedback
Integrated good-read beeper
Automatic sensing or manual trigger options available
High-impact resin creates a solvent-tolerant enclosure
