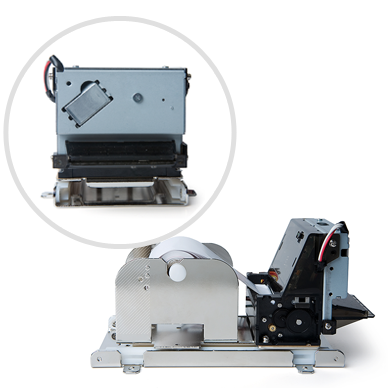

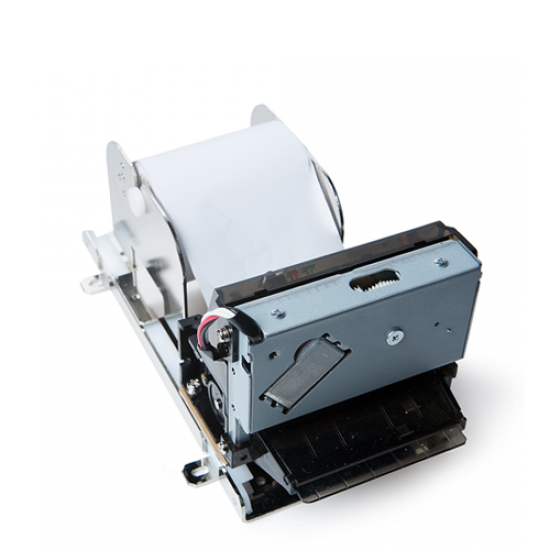

T280 2 Inch Printer
Features
- - Very silent printing thru direct thermal printing method.
- High resolution(203dpi : 8dots/mm).
- UART(RS-232C or TTL), Parallel[option] Interface
- Low power consumption.
- Auto cutting.
- Supports text and graphic printing.
- Easier maintenance with self-diagnostics.
- Microsoft Widows XP / VISTA / 10/ Anroid
- Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer
Applications
Test & Measurement, Transportation, Health care, ATM, Coupon, Self service, Kiosks, Electronic voting systems.
Platform
- Android
- Window
- Linux
Specification
ItemSpecificationPrintingDirect thermal line printingPaper loadingAuto paper loadingCharacters per line42cpl(MAX)Character sizeEng. : 9x24dots, 12x24dotsKor. : 16x24dots [24x24dots]Resolution203dpi, 8dots/mmPrint width2-inch (48mm, 384dots)Printing speed120mm/sec(MAX)Dimensions (WxDxH)T280 : 190x87.5x103mm WeightT280 : 797gInterfaceUART(RS-232C) or USBPaper suppliedThermal roll paper, label roll (60mm wide, 80ø),
Paper thickness : 60±5㎛Barcode supported
1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E,
EAN8, EAN13, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,
Truncated PDF417
Microsoft Widows XP / VISTA / 10
Windows CE, Linux, Android, Blackberry
H/W spec
MCU : 32bits RISC, FLASH : 8Mbytes, RAM : 16Mbytes
Receive buffer size1M bytesInput Power24VDC, Standby 60mA and 3.0AOptionSliding mount assembly [T80]Operating temperature-10°C~50°CStorage temperature-10°C~70°CMCBF(Mean Cycle Between failure)Mechanical37,000,000 linesHeadApproximately 50 Km£150.00
- Stock: In Stock
- Model: T280
- Weight: 0.20kg
